Electrical System Booklet
For residential properties
The electrical system booklet is not a mandatory document by law, but it means that there is a consistent compliance throughout Italy with requirements set out by Article 8 of the Italian Ministerial Decree no. 37/2008, charged to the client or the property owner to keep their electrical systems safe and efficient.
Through the electrical system booklet, the installation company is able to prepare and deliver all the necessary documentation to the owner so that it can fulfil its legal obligations.
The Declaration of Conformity and / or, if applicable, the Declaration of Compliance, must be attached to the booklet, documents required by law that certify compliance with the rule of the trade according to current legislation (Article 7 of Italian Ministerial Decree No. 37/2008 ) and the instructions for system use and maintenance.

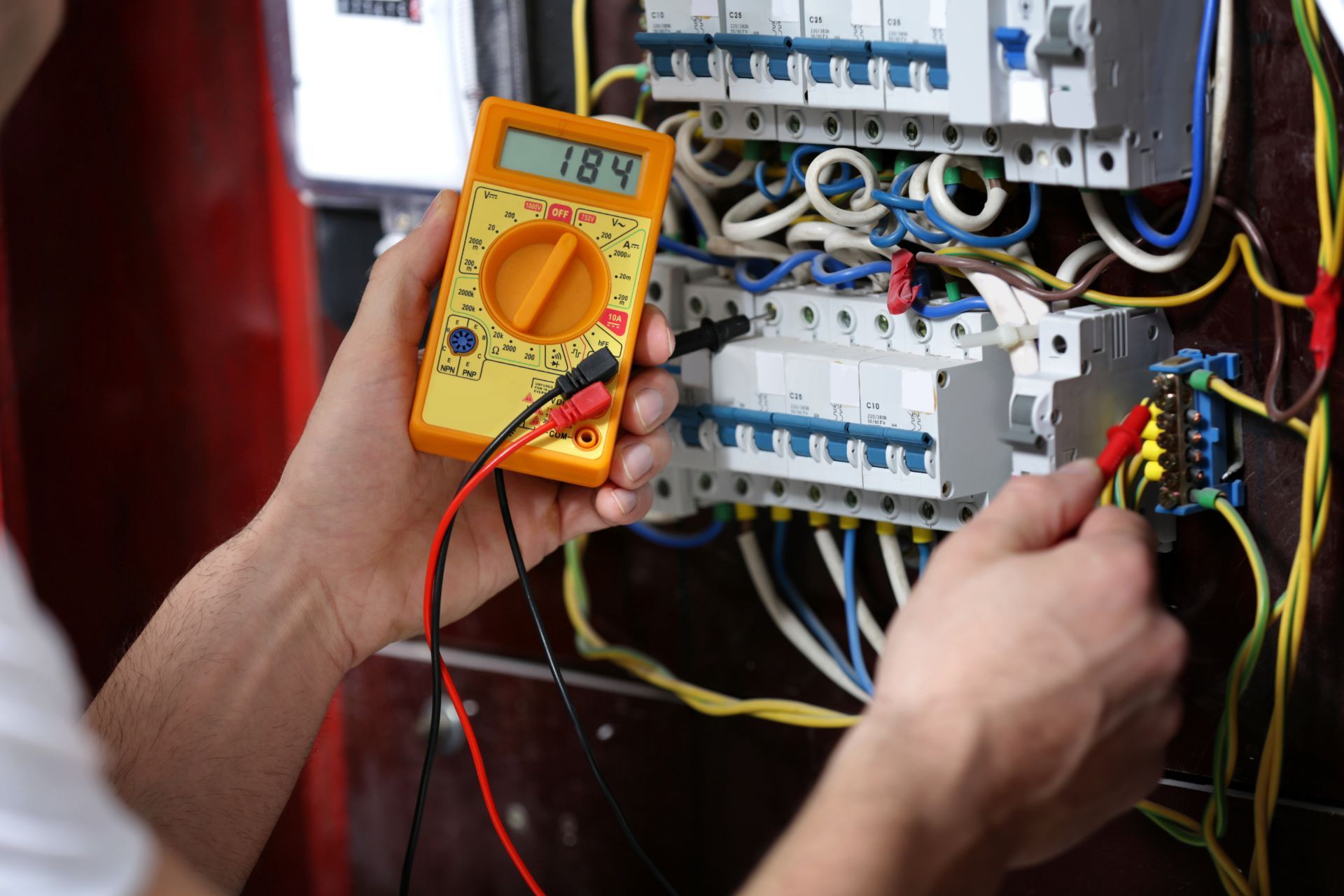

Periodic checks
We carry out periodic checks in order to maintain the "Periodic Inspection logbook."
According to Art. 80 - 87 of Italian Legislative Decree 81/08 Chapter III and subsequent CEI EN standard amendments, the employer is required to have a checks logbook according to the indications of the current good practice standards to check the state of repair and efficiency for the electrical systems safety.
These articles specify:
- requirements from the employer (art. 80);
- safety requirements (art. 81);
- live working (art. 82);
- working near live parts (Article 83);
- lightning protection (art. 84);
- building, systems, and equipment protection (Article 85);
- periodic checks (art. 86)
sanctions against the employer, manager, hirer and granting body (Article 87)
The "Inspection logbook" must be kept at the plant by the employer and must be made available to the supervisory authority if necessary.
These checks are specified in Article 86 paragraph 1-3 and state that inspection must be made to check the state of repair and efficiency for safety purposes. This means using a specifically certified instrument, value and the state of the ground system, the duration of the emergency lamps and the correct functioning of the differential switches must be checked.
These checks are not to be considered to substitute those carried out by type A Inspection Bodies following the UNI CEI EN 17020 standard and are mandatory every 2/3/5 years depending on the business and system. These bodies are authorised by the Ministry of Economic Development.
We are available for info and enquiries!!
Testing equipment
All our equipment periodically certified to ensure optimal service and to check any wear and tear that would compromise test results.
We try to make sure that we have all necessary equipment so that we can manage emergencies and not have any delays in renting out or picking up machinery if necessary.
SIRIUS87
Part of the multi-function HT ITALIA group of tools that can carry out complete inspections on
civil and industrial electrical installations in accordance with CEI 64-
8.
Functions:
- Protective conductors continuity with 200mA
- Insulation resistance with 50, 100, 250, 500, 1000VDC
- Loop / Line Phase-Phase, Phase-Neutral, Phase-Earth impedance even at high resolution (0.1mOhm)
- Short-circuit apparent power
- Contact voltage
- AC voltage and frequency
- Differential tripping time and current type A, AC, Standard and Selective with test currents 10, 30, 100, 300, 500mA
- Global earth resistance without RCD tripping
- Earth resistance with voltamperometry with 2-3 wires
- Ground resistivity with 4-terminal method
Cyclical direction phasing
VEGA76
This single-phase recorder complies with the requirements of the European Low Voltage Directive 73/23 / EEC (LVD) and the EMC Directive 89/336 / EEC, amended with 93/68 / EEC
Adjustable sizes:
- Phase and three-phase electric power
Phase currents, neutral current - Active, Reactive, Apparent, phase and total power
- Active Energy (Class 2 EN61036), Reactive Energy (Class 3 IEC1268)
- Phase and total power and cos? factor
- Voltage and current harmonics (DC, 1,2, ... 49)
- Voltage anomalies (dips, peaks)
- Predefined records (EN50160, Voltage Anomalies, Harmonics, Start Mach, Power & Energy)
IDEAL LANTEK II
The LanTEK® Wiring Tester
Used to measure twisted pair (TP) cables, coaxial cables
and fibre optic cables (LWL), which are inserted into communication networks for the
high-speed data transmission.
HT4050
It was designed in order to carry out necessary checks in the industrial field on electrical equipment and PTTA electrical panels in accordance with the respective reference standards IEC / EN60204-1: 2006 and IEC / EN60439-1 (CEI 17-13).
Functions:
- Protection circuit continuity with I> 10A, V <12VCA
- Protection circuit continuity with I> 10A, V <6VAC
- Insulation resistance with 500V DC voltage
- Dielectric strength with voltage 1000V, 2500VAC
- Dielectric strength with programmable voltage up to 4000VAC
- Programmable timer and limit thresholds that can be set to measures
- Internal capacity discharge time
- Leakage current from equipment plug
- Functional test measuring current on plug
